? Strong pulse capability, minimum pulse width can reach 10ms
? High test accuracy, range accuracy reaches 6nA ,current is accurate and stable
? Seamless range switching, reject peak switching,high test stability
? Real-time calculation of step SOC , improve the efficiency of rate charge and discharge operation
? Support constant calibration, custom expression variables, BMS variables
? Current and power condition simulation, truly restore diversified usage scenarios

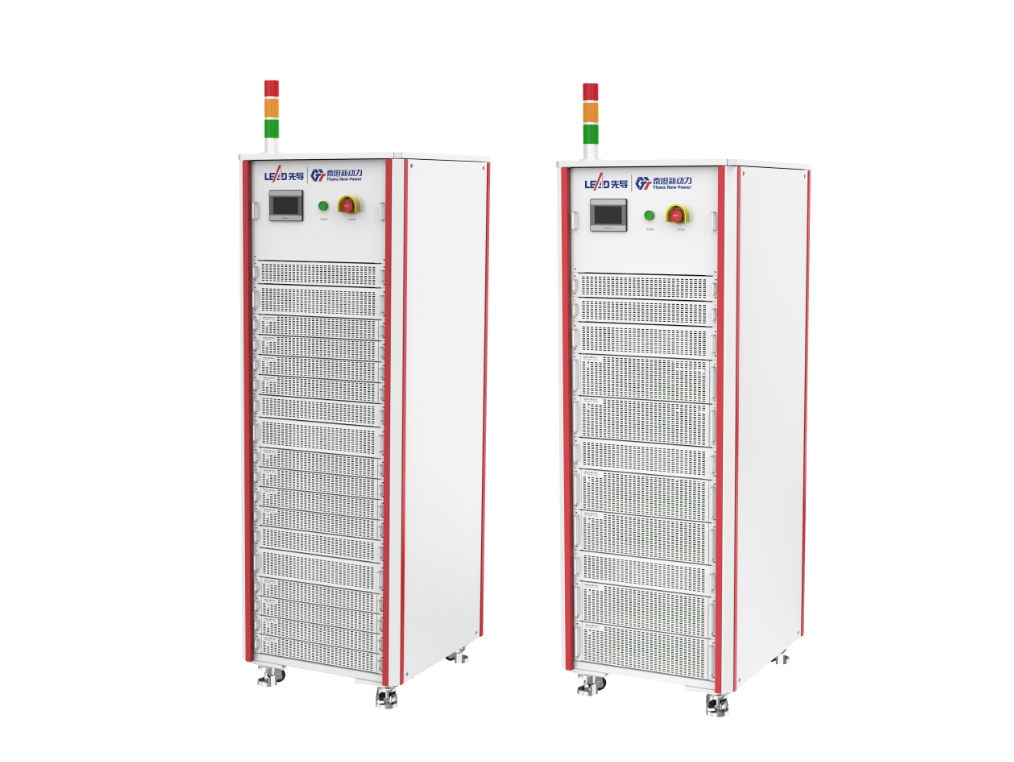

| System Specifications | 5V 60A | 5V 300A | 5V 600A | 5V 1200A |
| Voltage Control range（min/max） | 0~5V | 0~5V | 0~5V | 0~5V |
| Voltage input lmpedance | 10G Ohm | 10G Ohm | 10G Ohm | 10G Ohm |
| CurrentStandard range | ±60A/5A/0.5A/20mA | ±300A/50A/5A/0.5A | ±600A/50A/5A/0.5A | ±1200A/50A/5A/0.5A |
| Current Response Time | ≤400μs | ≤2.5ms | ≤2.5ms | ≤2.5ms |
| Minimum Voltage@Maximum Current | 0V@60A | 0V@300A | 0V@600A | 0V@1200A |
| Resolution | 24bit | 24bit | 24bit | 24bit |
| Control Precision | ≤±0.02% FS | ≤±0.02% FS | ≤±0.02% FS | ≤±0.02% FS |
| Rated output power per channel | 300W | 1500W | 3000W | 6000W |
| Number of standard channels | 8~64 | 2~12 | 1~8 | 1~4 |
